Shipping Container Door Design

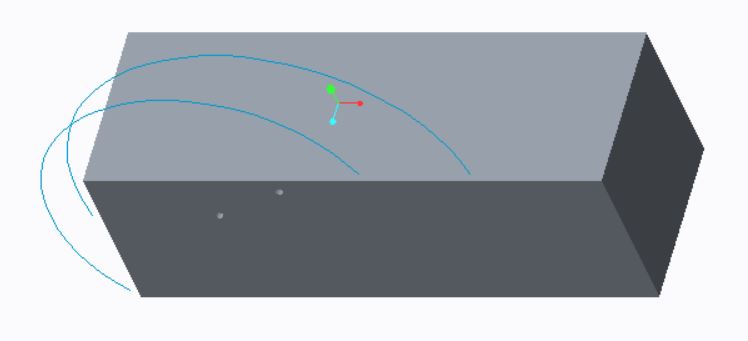

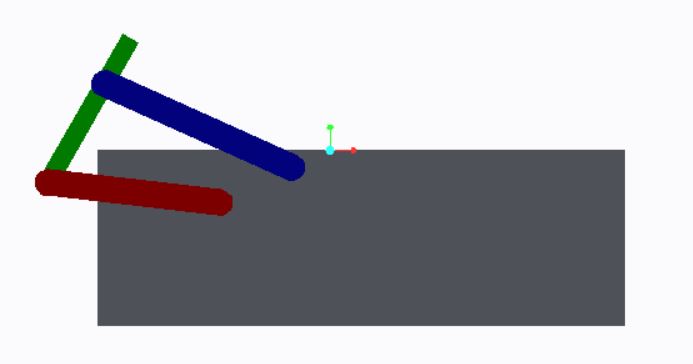

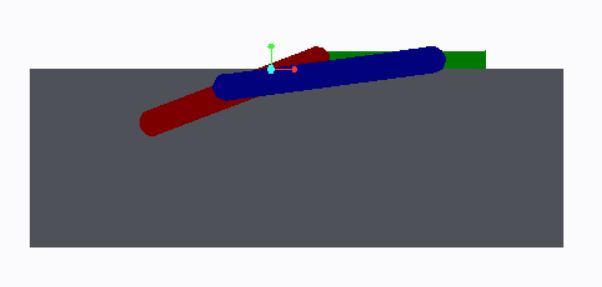

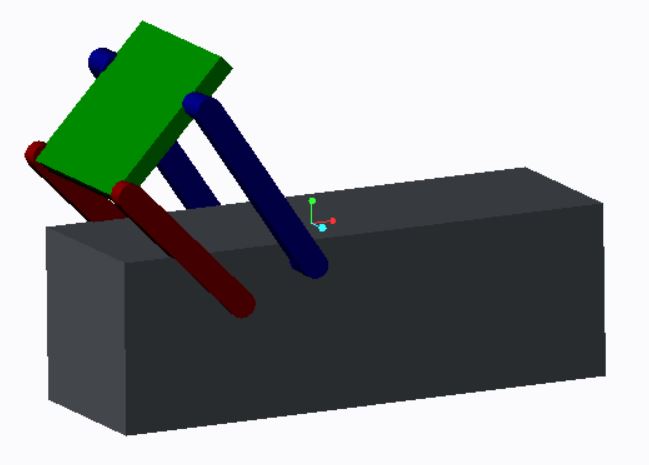

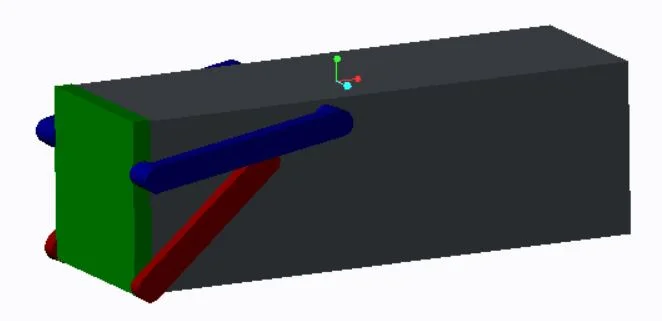

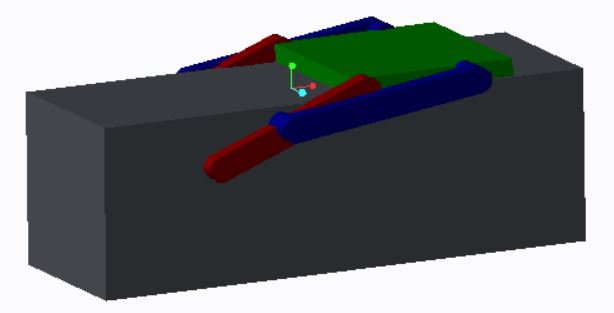

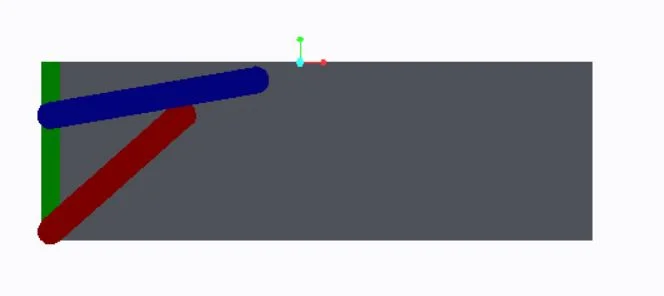

The goal was to create a shipping container door design in Creo using a 4 bar system. The door raises off the front and rests flat on the top of the container without clipping the top edge. This project required heavy use of Creo for part design, assembly, and simulation. The final system was run with a motor in Creo through an opening and closing simulation.


  • Display proficiency in basic Creo operation.
  • Use a 4 bar system in a practical application.
